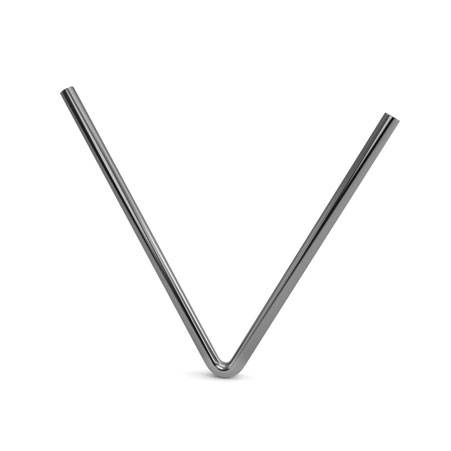

Stainless Steel V Anchors

Stainless steel V anchors are an essential component for maintaining the integrity and safety of refractory linings in high-temperature industrial applications. Their combination of heat resistance, structural support, and corrosion protection ensures reliable performance, even in the most demanding environments. By choosing the correct material grade, type, and installation method, industries can significantly extend the service life of their refractory linings while minimizing maintenance costs.

Stainless Steel V Anchors are among the most reliable and widely used refractory anchoring systems designed for industrial furnaces, kilns, incinerators, and petrochemical plants. These anchors play a critical role in holding refractory linings firmly in place, ensuring structural stability and long-lasting performance even under extreme operating conditions. With their “V” shaped design, they offer exceptional support to refractory bricks, castables, and ceramic fiber linings, preventing detachment or sagging during thermal cycling.

Modern industries demand high-quality V anchors that can withstand aggressive environments, resist oxidation, and maintain integrity under fluctuating temperatures. Whether for new constructions or maintenance projects, stainless steel V anchors remain the first choice for engineers and maintenance teams worldwide.

What Are Stainless Steel V Anchors?

V Anchors are specially designed metallic fixtures in the shape of the letter “V,” fabricated from heat-resistant and corrosion-resistant stainless steels and other alloys. They are welded or stud-welded onto the internal surface of equipment such as furnaces, reactors, ducts, and reformers, providing strong anchorage for refractory linings.

Their unique V-configuration offers flexibility, allowing the refractory to expand and contract without cracking or spalling. This design distributes stresses evenly across the lining, enhancing its service life and operational safety.

Applications of Stainless Steel V Anchors

Stainless steel V anchors are integral to many industries that rely on high-temperature equipment, including:

• Petrochemical plants: For holding monolithic linings in reformers, reactors, and crackers.
• Power generation: In boilers, incinerators, and thermal power plant ducts.
• Steel and metallurgical industries: For ladles, kilns, and reheating furnaces.
• Cement and lime plants: Securing refractory castables in rotary kilns and preheaters.
• Ceramic and glass manufacturing: For maintaining stable linings in high-temperature furnaces.
• Waste-to-energy and incineration plants: Offering reliable refractory support in corrosive environments.

The versatility of V anchors makes them indispensable wherever refractory materials are subjected to thermal shocks, vibration, and chemical attack.

Materials and Grades of Stainless Steel V Anchors

The choice of material for V anchors is crucial for ensuring optimal performance under specific service conditions. Manufacturers offer V anchors in a wide range of stainless steel grades and heat-resistant alloys, including:

• AISI 304 / 304L Stainless Steel – Excellent corrosion resistance, suitable for general-purpose applications.
• AISI 316 / 316L Stainless Steel – Enhanced resistance to pitting and chloride attack, widely used in chemical and marine environments.
• AISI 310 / 310S Stainless Steel – Superior high-temperature strength and oxidation resistance, ideal for continuous exposure above 1000°C.
• AISI 321 Stainless Steel – Titanium-stabilized, resisting intergranular corrosion during high-temperature operations.
• AISI 347 Stainless Steel – Columbium-stabilized stainless steel for elevated temperature service.
• AISI 330 Stainless Steel – Excellent carburization and oxidation resistance, perfect for petrochemical applications.
• Alloy 601 (Inconel 601) – Exceptional oxidation and creep resistance at extreme temperatures.
• Alloy 800 (Incoloy 800/800H/800HT) – Outstanding strength and structural stability in high-temperature environments.
• Nickel-Chromium Alloys – For severe oxidation and carburization service.
• Mild Steel (MS) & Carbon Steel – Economical options for less aggressive environments.

By offering multiple grades, manufacturers ensure that stainless steel V anchors meet the diverse thermal, chemical, and mechanical demands of different industries.

Types of V Anchors

Stainless steel V anchors are available in several types to accommodate different lining thicknesses and applications:

• Standard V Anchors – For general-purpose refractory linings.
• Heavy-Duty V Anchors – Designed for thicker linings and severe operating conditions.
• Flexible V Anchors – Allow for significant thermal expansion without damaging the lining.
• Custom-Fabricated V Anchors – Tailored for unique design requirements and equipment geometries.
