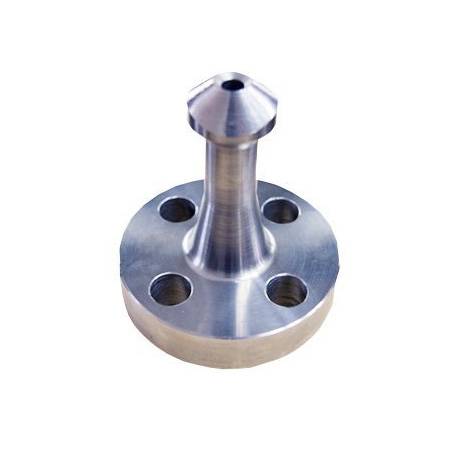

Stainless Steel Nipo Flange

Stainless steel Nipo flanges offer a high-performance solution for connecting pipelines, especially where reliability, strength, and corrosion resistance are critical. With a wide range of materials, sizes, and standards, they are an indispensable component across multiple industries.

A Stainless Steel Nipo Flange is a specialized piping component designed to create a reliable connection between pipes of different sizes. Widely used in high-pressure and high-temperature applications, Nipo flanges combine the features of a weld neck flange and a Nipolet, offering superior strength, leak-proof performance, and a streamlined flow path. The unique design reduces turbulence and minimizes erosion, making them suitable for a wide range of industries such as oil & gas, petrochemical, power generation, chemical processing, and shipbuilding.

Materials & Grades

• Stainless steel Nipo flanges are available in various grades to meet diverse industrial requirements. Commonly used grades include:
• Austenitic Stainless Steel: SS 304, 304L, 316, 316L, 321, 347, and 904L – offering excellent corrosion resistance and durability.
• Martensitic Stainless Steel: SS 410, 420 – known for higher hardness and wear resistance.
• Duplex & Super Duplex Stainless Steel: Grades like UNS S31803 and S32750 – providing superior strength and chloride stress corrosion cracking resistance.
• Each grade is chosen based on operating conditions, including temperature, pressure, and the corrosiveness of the medium.

Manufacturing Standards

High-quality stainless steel Nipo flanges are manufactured according to global standards such as:

• ASME B16.5 – Pipe flanges and flanged fittings
• ASME B16.47 – Large diameter flanges
• MSS-SP-97 – Integrally reinforced branch outlet fittings
• DIN, EN, and JIS – International norms for dimensional accuracy and pressure ratings

These standards ensure compatibility, reliability, and safe performance in demanding applications.

Types of Stainless Steel Nipo Flanges

Stainless steel Nipo flanges are available in different configurations to meet varied application needs:

• Welded Nipo Flange – Designed for permanent welded connections
• Threaded Nipo Flange – Easy to assemble and disassemble without welding
• Socket Weld Nipo Flange – Suitable for small-diameter, high-pressure pipelines
• Blind Nipo Flange – Used to close the end of a piping system
• Reducing Nipo Flange – Facilitates the connection of pipes of different diameters

Key Features and Advantages

• Corrosion Resistance: Stainless steel grades like 316L and 904L offer exceptional resistance to corrosion, rust, and oxidation.
• High Strength: Capable of withstanding high pressure and temperature conditions.
• Leak-Proof Connection: Welded design ensures a secure and durable joint.
• Versatility: Suitable for a range of industries, fluids, and environments.
• Ease of Installation: Flanged ends make alignment and maintenance straightforward.
• Customizable: Available in various sizes, schedules, and pressure classes (150#, 300#, 600#, 900#, and 1500#).

Applications

Stainless steel Nipo flanges are integral to a wide range of industries and applications:

• Oil & Gas Pipelines: For high-pressure, corrosive environments.
• Petrochemical Plants: Handling aggressive chemicals and fluids.
• Power Generation: Used in steam, gas, and hydraulic systems.
• Pharmaceutical & Food Processing: Hygienic and contamination-resistant.
• Marine & Offshore: Resists seawater corrosion and harsh environments.
• Water Treatment Plants: Durable for both potable and industrial water systems.

Quality Assurance

Manufacturers of stainless steel Nipo flanges adhere to stringent quality control protocols, including non-destructive testing (NDT), ultrasonic testing (UT), radiography, and pressure testing. This ensures each flange meets required standards for dimensional accuracy, pressure retention, and material integrity.

Selecting the Right Nipo Flange

Choosing the correct stainless steel Nipo flange involves evaluating several factors:

• Operating Pressure & Temperature
• Pipe Size & Schedule
• Material Grade Compatibility
• Application Environment (corrosive, high temperature, etc.)
• Compliance with International Standards

Working with a trusted SS Nipo flange supplier ensures the correct fit and long-term performance.

Global Demand and Supply

The demand for stainless steel Nipo flanges continues to grow due to expanding oil & gas exploration, infrastructure development, and modernization of industrial plants. Leading suppliers maintain large inventories of SS 304, SS 316, and SS 904L Nipo flanges, ensuring fast delivery and competitive pricing.
