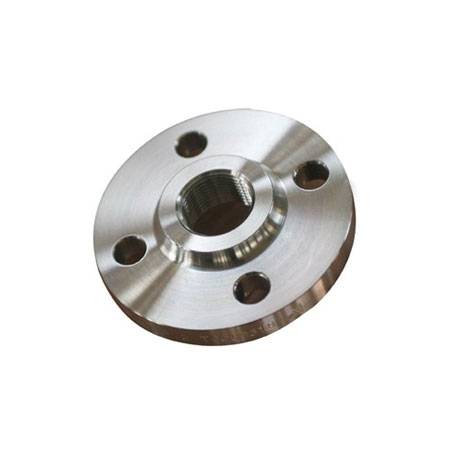

Stainless Steel Threaded Flanges

Stainless Steel Threaded Flanges remain an indispensable component in modern piping systems due to their ease of installation, versatility, and reliability

Stainless Steel Threaded Flanges are among the most widely used connecting components in piping systems across diverse industries. These flanges, also known as SS threaded flanges, are designed with an internal thread that mates directly with the external threads of pipes. They are highly popular in low-pressure, non-welded piping applications, where quick assembly and disassembly are required. Unlike welding neck flanges, threaded flanges eliminate the need for welding, making them suitable for highly flammable, explosive, or hazardous environments where welding could pose safety risks.

Key Features of Stainless Steel Threaded Flanges

• Easy Installation & Removal: Threaded flanges are designed for fast and simple installation without welding.
• Leak-Resistant Connections: Provide secure and tight seals, ideal for low-pressure applications.
• Corrosion Resistance: Being made from stainless steel, these flanges offer superior resistance to oxidation, rust, and chemical exposure.
• Versatile Design: Compatible with a wide range of pipe sizes and pressure ratings.
• Cost-Effective Solution: Saves welding costs and reduces downtime in maintenance operations.

Common Types of Stainless Steel Threaded Flanges

• Different industrial projects require specific flange types based on piping requirements. The most common threaded flange types include:
• Raised Face (RF) Threaded Flanges – Enhance gasket sealing and are widely used in chemical, petrochemical, and water treatment plants.
• Flat Face (FF) Threaded Flanges – Commonly used in low-pressure, non-critical applications, providing a uniform sealing surface.
• Male & Female (M&F) Threaded Flanges – Offer extra strength and prevent leakage in high-pressure systems.
• Ring Type Joint (RTJ) Threaded Flanges – Designed for critical service conditions with high-pressure and high-temperature pipelines.
• Reducing Threaded Flanges – Allow the connection of pipes with different sizes without the need for reducers.

Applications of Stainless Steel Threaded Flanges

Threaded flanges are extensively used in industries where welding is not feasible or safe. Some key application sectors include:

• Oil & Gas Industry – For connecting pipelines in refineries, offshore rigs, and petrochemical plants.
• Chemical Processing Units – Resistant to aggressive chemicals, making them suitable for transporting corrosive fluids.
• Water Treatment Plants – Used in low-pressure piping and pumping stations.
• Power Generation – Reliable connections for steam and water pipelines.
• Pharmaceutical & Food Processing – Hygienic, easy-to-clean, and corrosion-resistant.
• Marine Engineering – Perform well in saltwater and corrosive environments.
• Fire Protection Systems – Provide secure, quick connections for sprinkler systems.

Materials and Grades of Stainless Steel Threaded Flanges

To cater to varying environmental conditions and industrial requirements, SS threaded flanges are manufactured in multiple stainless steel grades, including:

Austenitic Stainless Steel:

• 304 / 304L – Excellent corrosion resistance and good weldability; commonly used in general-purpose applications.
• 316 / 316L – Superior resistance to chlorides and acidic environments; widely used in chemical and marine industries.
• 321 – Stabilized with titanium for better resistance to intergranular corrosion.
• 347 – Enhanced creep strength and resistance to carbide precipitation.
• Duplex & Super Duplex Stainless Steel:
• 2205 Duplex – Combines high strength with exceptional resistance to pitting and stress corrosion cracking.
• 2507 Super Duplex – Ideal for offshore and highly corrosive environments due to high chromium, molybdenum, and nitrogen content.
• Martensitic Stainless Steel:
• 410 / 420 – Known for hardness and wear resistance, commonly used in heat-resistant and mechanical applications.
• Precipitation-Hardening Stainless Steel:
• 17-4 PH – High strength and corrosion resistance, used in aerospace and power generation applications.
• Special Alloys:
• 904L – Superior resistance to strong reducing acids like sulfuric acid.
• Alloy 20 – Excellent for chemical processing involving sulfuric acid and chlorides.

International Standards & Pressure Ratings

SS threaded flanges are manufactured as per global standards to ensure compatibility and safety:

• ASME B16.5 – Covers flanges from ½" to 24".
• DIN, EN, and ISO Standards – For European and international markets.
• BS 4504 – British standard for threaded flanges.
• Pressure Classes – Available in Class 150, 300, 600, and up to 2500 depending on design and material grade.
• Selection Criteria for Stainless Steel Threaded Flanges

When choosing the right threaded flange for your application, consider:

• Material Grade – Select a grade that matches the chemical environment.
• Pressure Rating – Ensure the flange can withstand system pressure.
• Size & Thread Compatibility – Match flange threads with pipe threads (NPT, BSP, etc.).
• Temperature Conditions – Consider operating temperature to avoid thread loosening or material degradation.
• Industry Standards – Ensure compliance with ASME, ANSI, DIN, and other relevant standards.

Maintenance and Service Life

Stainless steel threaded flanges require minimal maintenance due to their corrosion-resistant properties. Regular inspection of threads and gaskets ensures leak-free operation. Proper lubrication of threads during installation can further extend service life and make disassembly easier during maintenance.
