Stainless Steel Elbow

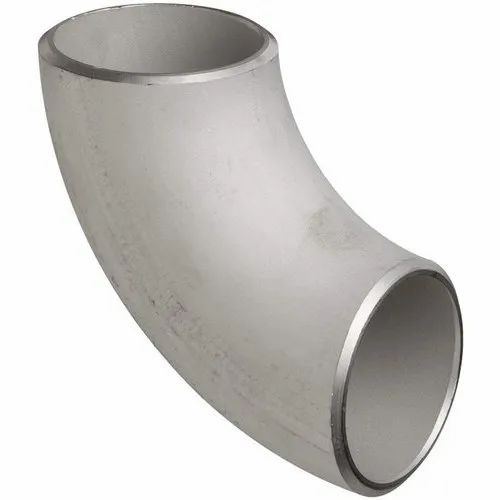

Stainless Steel Butt Weld Elbows are a vital part of any piping system, offering robust performance, reliability, and long-term cost savings. With a wide variety of types, materials, and sizes available, they cater to virtually all industrial piping needs. Whether you require a 90 Degree Butt Weld Elbow, a 45 Degree Butt Weld Elbow, or a custom-designed reducing elbow, stainless steel remains the most trusted material for durability and performance.

Stainless Steel Butt Weld Elbows are essential components used in piping systems to change the direction of flow, reduce pressure drops, and ensure smooth fluid transfer. These elbows are connected to pipes through a butt-welding process, ensuring a strong, leak-proof, and permanent connection. Widely used in industries such as oil & gas, chemical processing, power generation, pharmaceuticals, food & beverage, water treatment, and marine engineering, Stainless Steel Butt Weld Elbows offer superior corrosion resistance, durability, and high-pressure handling capacity.

Types of Stainless Steel Butt Weld Elbows

Stainless steel elbows are available in various configurations to suit specific piping requirements:

• 90 Degree Butt Weld Elbow – The most common elbow, used to change the direction of the pipeline by 90 degrees.
• 45 Degree Butt Weld Elbow – Used where a smoother directional change is needed to minimize pressure losses.
• 180 Degree Return Bend – Designed for complete flow reversal in piping systems.
• Long Radius Butt Weld Elbow (LR Elbow) – Provides a gradual flow change, reducing turbulence and pressure drop.
• Short Radius Butt Weld Elbow (SR Elbow) – Ideal for tight spaces where installation room is limited.
• Reducing Butt Weld Elbow – Connects pipes of different diameters while changing the direction.

Material Grades for Stainless Steel Butt Weld Elbows

Stainless Steel Butt Weld Elbows are manufactured in a wide range of grades to meet diverse industrial applications:

Austenitic Stainless Steel:

Grades: 304, 304L, 316, 316L, 321, 347, 310, 904L

Known for excellent corrosion resistance and weldability.

Duplex & Super Duplex Stainless Steel:

Grades: UNS S31803, S32205, S32750, S32760

Offer high strength, exceptional resistance to stress corrosion cracking, and superior durability.

Ferritic Stainless Steel:

Grades: 409, 410, 430, 446

Provide good oxidation resistance, suitable for automotive and heat exchanger applications.

Martensitic Stainless Steel:

Grades: 410, 420, 431

Offer high strength and moderate corrosion resistance.

Manufacturing Process

Stainless Steel Butt Weld Elbows are manufactured using advanced techniques that ensure high precision and durability:

• Seamless Elbows – Produced from a single piece of stainless steel without any welds, offering superior strength and pressure resistance.
• Welded Elbows – Fabricated by welding steel plates or pipes; ideal for large-diameter applications.
• Hot Induction Bending – Provides smooth bends with consistent wall thickness.
• Cold Forming – Used for small-diameter elbows with precise dimensions.

All elbows undergo stringent testing, including radiographic, ultrasonic, and hydrostatic testing, to ensure compliance with international standards such as ASME B16.9, MSS-SP-43, and DIN specifications.

Key Features & Advantages

• High Corrosion Resistance – Suitable for harsh industrial environments.
• Leak-Proof Joints – Butt-welded connections provide enhanced strength and reliability.
• Smooth Flow Characteristics – Reduces pressure losses and turbulence.
• Cost-Effective – Long service life minimizes maintenance and replacement costs.
• Versatility – Available in multiple sizes, schedules, and wall thicknesses to match diverse piping systems.

Applications of Stainless Steel Butt Weld Elbows

Stainless Steel Butt Weld Elbows find applications in numerous industries due to their exceptional performance:

• Oil & Gas Pipelines
• Petrochemical & Chemical Plants
• Power Generation & Nuclear Plants
• Pharmaceutical & Food Processing Units
• Water Treatment Facilities
• Shipbuilding & Marine Systems
• HVAC & Fire Protection Systems

Available Standards

• Standards: ASME B16.9, MSS-SP-75, DIN 2605, JIS B2313, EN 10253
• Wall Thickness: SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS

End Connections & Customization

• Beveled Ends – Standard for butt-weld fittings, ensuring proper welding and fit-up.
• Plain Ends – Available on request.
• Customized Dimensions – Tailor-made elbows based on drawings or specific project requirements.
