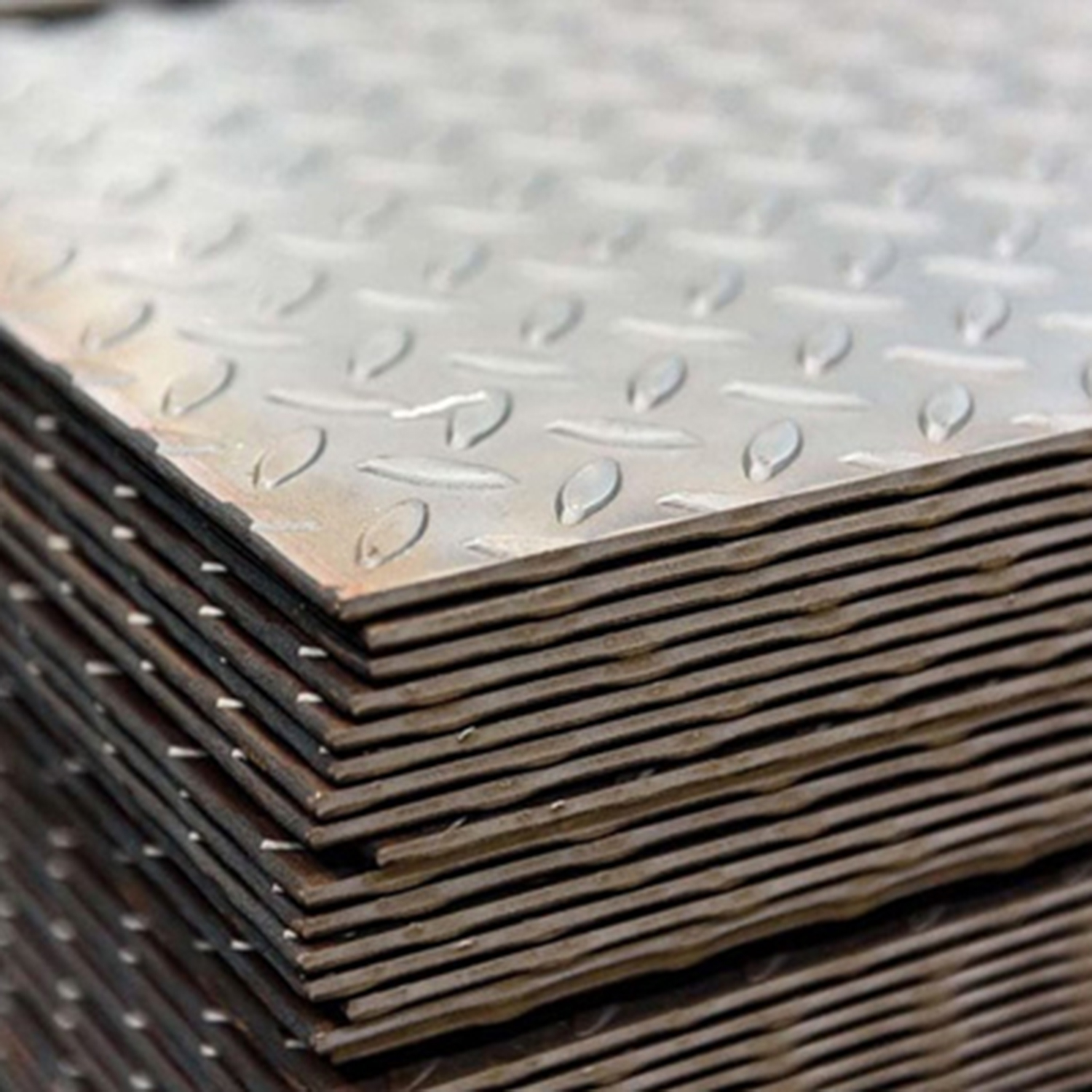

Stainless Steel 301 and 301LN Chequered Plates are widely used austenitic stainless steels known for their high strength, excellent corrosion resistance, and superior forming properties. These chequered plates, also referred to as diamond plates or tread plates, feature a raised pattern that provides improved slip resistance, making them ideal for flooring, transportation, and industrial applications.
SS 301 (UNS S30100 / Werkstoff Nr. 1.4310) and SS 301LN (UNS S30153) plates meet ASTM A240 / ASME SA240 specifications and are offered in hot-rolled and cold-rolled finishes, with options for polished, brushed, and designer surface finishes.
Chemical Composition (%)
Element
SS 301
SS 301LN
Carbon (C)
? 0.15
? 0.03
Chromium (Cr)
16.0 – 18.0
16.0 – 18.0
Nickel (Ni)
6.0 – 8.0
6.0 – 8.0
Manganese (Mn)
? 2.0
? 2.0
Silicon (Si)
? 1.0
? 1.0
Nitrogen (N)
—
0.10 – 0.20
Phosphorus (P)
? 0.045
? 0.045
Sulfur (S)
? 0.03
? 0.03
Key Highlights:
301LN has lower carbon and added nitrogen, improving weldability, toughness, and cryogenic strength.
301 provides high tensile strength after cold working and retains good ductility.
Physical Properties
Property
SS 301
SS 301LN
Density
7.93 g/cm³
7.93 g/cm³
Modulus of Elasticity
~193 GPa
~193 GPa
Thermal Conductivity
16.3 W/m·K
16.3 W/m·K
Coefficient of Expansion
17.2 µm/m·K
17.2 µm/m·K
Specific Heat
500 J/kg·K
500 J/kg·K
Electrical Resistivity
0.72 µ?·m
0.72 µ?·m
Melting Range
1400 – 1450 °C
1400 – 1450 °C
Mechanical Properties
Property
SS 301
SS 301LN
Tensile Strength (MPa)
515 – 930 (cold worked)
515 – 930 (cold worked)
Yield Strength (MPa)
? 205
? 200
Elongation (%)
40 – 60
45 – 60
Hardness (HRB)
? 95
? 95
Impact Toughness
Excellent
Superior (with N)
Modulus of Elasticity
~193 GPa
~193 GPa
Specifications and Standards
Standards: ASTM A240 / ASME SA240, EN 10088-2, JIS G4304/4305, and DIN standards.
Grades Available: SS 301, SS 301LN.
Thickness: 3 mm – 12 mm (standard for chequered plates; custom thicknesses available).
Width: 1000 mm, 1219 mm, 1500 mm, 2000 mm, and wider.
Length: 2000 mm, 2440 mm, 3000 mm, 6000 mm, or cut-to-size.
