Stainless Steel Graphite Filler Gaskets deliver outstanding sealing performance for industries operating under extreme conditions. Their unique combination of stainless steel’s strength and graphite’s resilience ensures long?term reliability, minimal maintenance, and cost?effective operations.
Stainless Steel Graphite Filler Gaskets are widely used in industries where high temperature, high pressure, and corrosive environments demand reliable sealing performance. These gaskets combine the superior strength of stainless steel with the excellent thermal and chemical resistance of graphite fillers. As a result, they provide leak?free sealing in pipelines, flanges, valves, pumps, and heat exchangers across various industrial sectors.
Stainless steel graphite filler gaskets are known for their durability, compressibility, and superior sealing even under fluctuating loads and extreme operating conditions. They are especially preferred in petrochemical, chemical processing, pharmaceutical, food processing, marine, power generation, and automotive industries.
What Are Stainless Steel Graphite Filler Gaskets?

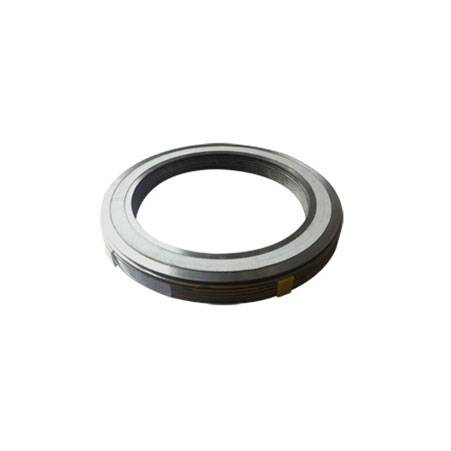

Graphite filler gaskets are a type of spiral wound gasket consisting of alternating layers of stainless steel winding and flexible graphite filler material. The stainless steel provides mechanical strength and resilience, while the graphite filler enhances heat resistance, chemical compatibility, and compressibility. These gaskets are specifically engineered to maintain a tight seal even in high?temperature applications where standard gaskets may fail.
Advantages of Stainless Steel Graphite Filler Gaskets
- Excellent Sealing Performance – Prevents leakage of liquids and gases even at high temperatures and pressures.
- High Temperature Resistance – Can withstand continuous service in environments up to 500°C and beyond, depending on grade.
- Corrosion and Chemical Resistance – Stainless steel and graphite together provide exceptional resistance to acids, alkalis, steam, and aggressive chemicals.
- Long Service Life – With proper installation, these gaskets offer extended durability, reducing maintenance and downtime.
- Versatility – Suitable for use in standard, raised?face, flat?face, and tongue?and?groove flanges.
- Cost?Effective – Reduces operational costs by minimizing leakage, energy loss, and maintenance frequency.
Materials and Grades of Stainless Steel Graphite Filler Gaskets
Stainless steel graphite filler gaskets are available in various stainless steel grades to suit different industrial applications:
- SS 304 Graphite Filler Gaskets – The most widely used grade, offering good corrosion resistance, strength, and affordability.
- SS 304L Graphite Filler Gaskets – Low carbon version of 304, minimizing carbide precipitation and suitable for welding applications.
- SS 316 Graphite Filler Gaskets – Provides superior resistance to chlorides, chemicals, and high temperatures; widely used in chemical and marine environments.
- SS 316L Graphite Filler Gaskets – Low carbon version for enhanced corrosion resistance in aggressive environments.
- SS 321 Graphite Filler Gaskets – Titanium?stabilized stainless steel with excellent resistance to intergranular corrosion; ideal for high?temperature service.
- SS 347 Graphite Filler Gaskets – Niobium?stabilized grade with excellent resistance to sensitization and intergranular corrosion.
- SS 410 Graphite Filler Gaskets – Martensitic stainless steel with good mechanical properties and moderate corrosion resistance.
- SS 904L Graphite Filler Gaskets – Highly alloyed austenitic stainless steel offering outstanding resistance to strong acids, including sulfuric acid.
Other materials such as Inconel®, Monel®, and Hastelloy® are also available for extreme conditions where stainless steel may not suffice.
Applications of Stainless Steel Graphite Filler Gaskets
These gaskets are designed to provide optimum performance in demanding applications, including:
- Petrochemical and Chemical Processing Plants – Sealing aggressive chemicals, solvents, and high?temperature fluids.
- Oil & Gas Industry – Used in pipelines, valves, and flanges to ensure zero leakage under extreme pressure.
- Power Generation – Ideal for boilers, turbines, and heat exchangers operating at high temperatures.
- Pharmaceutical and Food Industries – Suitable for hygienic applications due to stainless steel’s non?reactive and easy?to?clean properties.
- Marine and Offshore Applications – Withstand corrosive seawater and harsh marine environments.
- Automotive and Aerospace – Used in engines, exhaust systems, and high?performance machinery where temperature and vibration resistance are crucial.
Types of Stainless Steel Graphite Filler Gaskets
- Spiral Wound Gaskets with Graphite Filler – Commonly used for pipelines, flanges, and heat exchangers; available with inner and outer rings for improved centering and protection.
- Kammprofile Gaskets with Graphite Layer – Offer exceptional sealing efficiency with minimal gasket stress; widely used in heat exchangers and vessels.
- Graphite?Faced Ring Joint Gaskets – Provide a superior seal in high?pressure and high?temperature applications.
- Double Jacketed Graphite Filler Gaskets – Suitable for sealing corrosive and high?temperature fluids where resilience is required.
