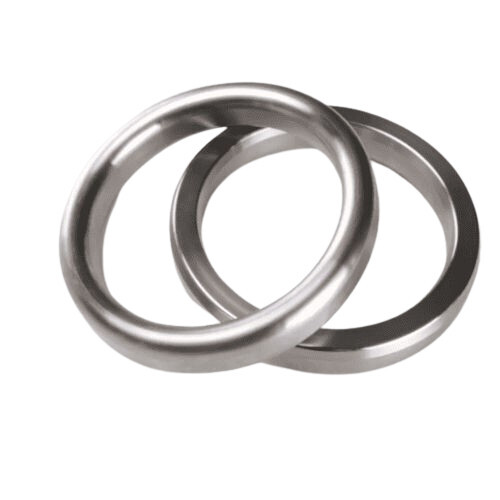

Stainless Steel Octagonal Gaskets

Stainless steel octagonal gaskets remain the preferred choice for demanding sealing applications across multiple industries. With an extensive range of materials, sizes, and standards, these gaskets offer exceptional sealing performance, durability, and adaptability.

Stainless steel octagonal gaskets are precision-engineered sealing components designed for critical industrial applications that require leak-proof joints under extreme pressure and temperature conditions. These gaskets, also known as SS octagonal ring gaskets, feature an eight-sided cross-section that ensures a reliable metal-to-metal seal, making them ideal for high-pressure flanged connections. Commonly used in industries such as oil & gas, petrochemicals, refineries, and power generation, stainless steel RTJ gaskets conform to API 6A and ASME B16.20 standards, ensuring compatibility and reliability.

Design and Functionality

The octagonal gasket design provides a tighter and more effective seal compared to traditional oval ring gaskets. When compressed between the groove of ring-type joint (RTJ) flanges, the gasket creates a strong barrier that resists blowouts and leakage. High-pressure octagonal gaskets are preferred in applications involving pressures up to 20,000 psi and temperatures exceeding 500°C. Their robust geometry ensures uniform stress distribution, making them suitable for cyclic loading conditions and severe operating environments.

Materials and Grades

Stainless steel octagonal gaskets are available in a wide range of materials and grades to meet diverse industrial requirements. Commonly used grades include:

• Stainless Steel 304 and 304L – Economical, corrosion-resistant options for general-purpose sealing applications.
• Stainless Steel 316 and 316L – Enhanced resistance to pitting, chlorides, and corrosive chemicals; widely used in marine and chemical processing.
• Stainless Steel 321 – Titanium-stabilized grade offering superior resistance to intergranular corrosion at elevated temperatures.
• Stainless Steel 347 – Niobium-stabilized, ideal for high-temperature service in thermal cycling conditions.
• Duplex Stainless Steels (UNS S31803 / S32205) – High strength and excellent resistance to stress corrosion cracking, especially in offshore environments.
• Super Duplex Stainless Steels (UNS S32750 / S32760) – Superior mechanical strength and exceptional resistance to highly corrosive media.
• Precipitation Hardening Grades (17-4PH, 15-5PH) – High strength and good toughness for demanding sealing operations.
• Special Alloys (Inconel®, Monel®, Hastelloy®, and Alloy 20) – For highly aggressive environments and extreme service conditions.

The choice of material depends on process media, pressure rating, operating temperature, and the environment in which the gasket will be used.

Applications of Stainless Steel Octagonal Gaskets

These gaskets are widely employed in industries where secure and durable seals are paramount:

• Oil & Gas – For high-pressure wellhead equipment, valves, and pipelines.
• Petrochemical Plants – Ensuring leak-free performance in refineries and chemical processing units.
• Power Generation – Used in steam and gas turbines, heat exchangers, and boiler systems.
• Offshore and Subsea Operations – Corrosion-resistant gaskets designed for harsh marine environments.
• Aerospace & Defense – Critical sealing in high-stress systems.
• Pharmaceutical and Food Processing – Hygienic-grade gaskets for contamination-free sealing.

Benefits of Stainless Steel Octagonal Gaskets

• Leak-proof Sealing – Delivers superior performance under high pressure and temperature.
• Durability – Excellent resistance to wear, corrosion, and deformation.
• Versatility – Compatible with a variety of flanges and sealing surfaces.
• Compliance – Manufactured to international standards (API, ASME, BS).
• Custom Engineering – Available in various sizes, thicknesses, and surface finishes.

Standards and Specifications

Stainless steel octagonal ring gaskets are manufactured as per global industry standards, including:

• API 6A and API 17D – For oilfield equipment and subsea applications.
• ASME B16.20 and B16.5 – Standard dimensions and pressure ratings.
• BS 1560, DIN, and ANSI Standards – Ensuring compatibility with international flange connections.

Surface Finishes and Coatings

To enhance sealing performance and longevity, gaskets may be supplied with specialized coatings and surface finishes, such as:

• Silver, Zinc, or PTFE Coatings – For improved corrosion resistance and reduced friction.
• Graphite or Phosphate Coating – To enhance surface sealing and protect against galling.
• Mirror-Polished or Smooth Finishes – Ensuring precise contact and reliable sealing.
