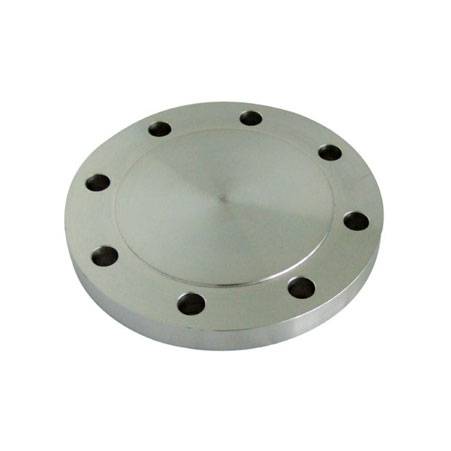

Stainless Steel AWWA Flanges are a critical component in waterworks and industrial piping systems, offering a balance of strength, corrosion resistance, and cost-effectiveness.
Stainless Steel AWWA Flanges are widely used components designed according to the American Water Works Association (AWWA) standards, offering superior performance, strength, and corrosion resistance for a variety of industrial applications. These flanges are ideal for waterworks, wastewater treatment, desalination plants, and various high-pressure pipeline systems where durability and reliability are paramount. The popularity of AWWA standard stainless steel flanges is due to their ease of installation, excellent pressure-handling capacity, and compatibility with different piping systems.
Types of Stainless Steel AWWA Flanges
- AWWA Slip-On Flanges – Easy to install and weld, these flanges slide over the pipe before welding.
- AWWA Weld Neck Flanges – Designed for high-pressure systems; offer superior stress distribution and secure connections.
- AWWA Blind Flanges – Used to close the ends of pipelines, valves, or pumps where future extensions are required.
- AWWA Threaded Flanges – Allow connection without welding; ideal for low-pressure and non-critical applications.
- AWWA Lap Joint Flanges – Used with stub ends for easy alignment, ideal for systems requiring frequent dismantling.
- AWWA Flange Rings – Typically flat rings bolted onto piping systems to create a secure joint.
Standards and Classes
AWWA flanges are manufactured following AWWA C207 standards, which categorize flanges into various classes based on pressure ratings:
- Class B (86 psi)
- Class D (175 psi)
- Class E (275 psi)
- Class F (300 psi)
These classes determine the maximum operating pressure and the suitable wall thickness for each flange type.
Materials and Grades of Stainless Steel AWWA Flanges
AWWA flanges are available in a wide range of stainless steel materials and grades, each chosen for specific service conditions. Commonly used grades include:
- Austenitic Stainless Steels: SS 304, 304L, 316, 316L, 321, 347
- Martensitic Stainless Steels: SS 410, 420
- Duplex & Super Duplex Steels: UNS S31803, S32205, S32750
Each grade provides different levels of corrosion resistance, durability, and suitability for potable water systems, chemical processing, and marine applications.
Applications of Stainless Steel AWWA Flanges
- Municipal Water Supply Systems – Ideal for water distribution networks and treatment plants.
- Wastewater Treatment Plants – Withstand corrosive environments and chemicals present in wastewater.
- Desalination Plants – Offer superior resistance to seawater corrosion.
- Fire Protection Systems – Used in pipelines and hydrants for reliable water flow.
- Irrigation Networks – Provide durable, leak-proof connections in agricultural applications.
- Industrial Process Piping – Suitable for chemical, petrochemical, and food-grade applications.
Benefits of Using Stainless Steel AWWA Flanges
- Excellent Corrosion Resistance: Ensures long service life even in harsh environments.
- High Durability: Capable of withstanding high pressure and temperature fluctuations.
- Leak-Proof Connections: Secure and tight joints minimize water and fluid loss.
- Low Maintenance: Reduced need for frequent inspections and replacements.
- Versatility: Available in various sizes, pressure classes, and material grades.
- Compliance with Standards: Manufactured according to AWWA C207 for guaranteed performance.
