Stainless Steel 5D, 6D Bend

Stainless Steel 5D and 6D bends are integral to creating efficient and durable piping systems. Available in a wide range of grades, sizes, and finishes, these bends are engineered to deliver superior performance in critical applications.

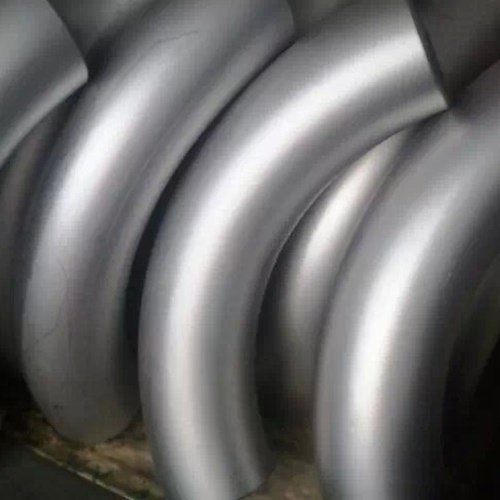

Stainless Steel 5D Bend and Stainless Steel 6D Bend are critical components widely used in piping systems across industries. They are specially designed to ensure smooth flow, reduced pressure drop, and efficient directional changes in pipelines. These bends are available in various radii, with “5D” and “6D” referring to the bend radius—five and six times the diameter of the pipe respectively.

Engineered for durability and performance, SS 5D and 6D bends are manufactured from premium stainless steel materials to resist corrosion, withstand high temperatures, and ensure a long service life. They are extensively used in oil & gas, chemical processing, power generation, water treatment, and petrochemical industries, where robust and leak-proof piping systems are essential.

A 5D or 6D bend is a pipe fitting that allows a smooth curvature to redirect the pipeline at a specific angle while minimizing turbulence and flow resistance.

• 5D Bend: Bend radius = 5 × nominal pipe diameter.
• 6D Bend: Bend radius = 6 × nominal pipe diameter.

Compared to short-radius bends, 5D and 6D bends offer a gradual curve, reducing stress concentration and providing better flow efficiency, which makes them suitable for high-pressure and high-velocity piping systems.

Advantages of Stainless Steel 5D and 6D Bends

• Excellent Corrosion Resistance – Ideal for harsh environments and corrosive fluids.
• Smooth Flow Transition – Reduces pressure drops and turbulence.
• High Strength and Durability – Can withstand extreme temperature and pressure conditions.
• Long Service Life – Minimal maintenance compared to carbon steel or other materials.
• Versatility – Available in multiple sizes, wall thicknesses, and grades.
• Aesthetic Appeal – Offers a polished, clean appearance for exposed installations.

Applications of Stainless Steel 5D, 6D Bends

These bends are crucial in industries that demand precision, reliability, and high performance. Common applications include:

• Oil & Gas Pipelines – Transporting crude oil, natural gas, and refined products.
• Chemical Processing Plants – Handling corrosive chemicals and fluids.
• Power Plants – Used in high-pressure steam, water, and gas systems.
• Petrochemical Industries – Efficient fluid transport in refineries and processing units.
• Water Treatment Facilities – For potable water, wastewater, and desalination plants.
• Shipbuilding & Marine Applications – Resistance to seawater corrosion.
• Pharmaceutical & Food Processing – Hygienic and easy-to-clean properties.
• HVAC & Firefighting Systems – Reliable for temperature and pressure variations.

Available Materials and Grades

Stainless Steel 5D and 6D bends are manufactured in a wide range of materials to meet specific industry requirements:

• Austenitic Stainless Steel Grades: SS 304, 304L, 304H, 316, 316L, 316Ti, 321, 321H, 347, 347H
• Duplex & Super Duplex Stainless Steel Grades: UNS S31803, S32205, S32750, S32760
• Ferritic Stainless Steel Grades: SS 409, 410, 430
• Martensitic Stainless Steel Grades: SS 420, 431, 440A, 440C

These grades are selected based on corrosion resistance, temperature tolerance, and mechanical strength, ensuring compatibility with demanding applications.

Types of Stainless Steel Bends

• Long Radius Bends (5D & 6D) – Standard for reducing flow resistance.
• Short Radius Bends – Used where space is limited.
• Mandrel Bends – Provide precise, wrinkle-free bending.
• U-Bends – Suitable for heat exchangers and condensers.
• Custom Fabricated Bends – Manufactured as per project specifications.
