Stainless Steel Spectacle Blind Flanges provide a reliable, durable, and safe solution for isolating and maintaining pipelines across a wide range of industries.

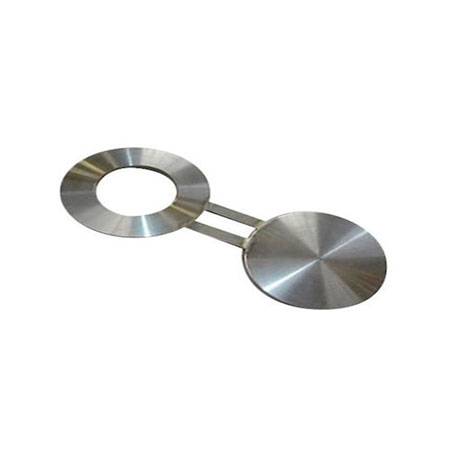

Stainless Steel Spectacle Blind Flanges are critical components used in pipeline systems for the safe isolation and maintenance of various process lines. Also known as figure-8 flanges or spec blinds, these flanges consist of a single-piece steel plate with two discs—one solid end to stop the flow (blind) and one open end (spacer) that allows flow when rotated. Designed for easy installation and inspection, stainless steel spectacle blinds are widely used in industries like petrochemical plants, oil & gas, water treatment, power generation, and chemical processing.
Common Standards and Specifications
Stainless steel spectacle blind flanges are manufactured according to international standards such as:
- ASME B16.48 – Line Blanks
- ASME B16.5 – Pipe Flanges and Flanged Fittings
- API 590 – Steel Line Blanks
- DIN and EN Standards – European specifications for line blanks
Pressure classes typically range from 150# to 2500#, ensuring compatibility with low- to high-pressure pipeline systems.
Materials and Grades of Stainless Steel Spectacle Blind Flanges
To meet varying industrial needs, spectacle blind flanges are produced in multiple stainless steel grades:
- Austenitic Stainless Steel: SS 304, SS 304L, SS 316, SS 316L, SS 321, SS 347
- Duplex Stainless Steel: UNS S31803, UNS S32205
- Super Duplex Stainless Steel: UNS S32750, UNS S32760
- Martensitic Stainless Steel: SS 410, SS 420, SS 431
- Precipitation-Hardened Stainless Steel: 17-4 PH
- High-Performance Alloys: Alloy 20, Inconel, Monel, Hastelloy (for highly corrosive environments)
Each grade is chosen based on pressure, temperature, and corrosion resistance requirements.
Types of Stainless Steel Spectacle Blind Flanges
- Raised Face (RF): The most common type, offering improved sealing with gaskets.
- Flat Face (FF): Used where the counter-flanges are flat-faced, often in low-pressure systems.
- Ring Type Joint (RTJ): Ideal for high-pressure and high-temperature applications, providing a metal-to-metal seal.
- Customized Spectacle Blinds: Tailored to meet specific pipeline dimensions, materials, and ratings.
Applications of Stainless Steel Spectacle Blind Flanges
Spectacle blind flanges are essential in industries that demand secure isolation of process lines, including:
- Oil & Gas Refineries – For high-pressure pipelines and safety shutdown systems.
- Petrochemical and Chemical Plants – To handle aggressive and corrosive media.
- Power Generation Facilities – Used in steam, condensate, and cooling water systems.
- Water Treatment Plants – To ensure safe maintenance of pipelines carrying water and wastewater.
- Pharmaceutical and Food Processing – For hygienic and contamination-free operations.
- Shipbuilding and Marine Applications – Resistant to saline and harsh marine environments.
Installation and Maintenance Tips
- Always verify alignment and bolt torque to prevent leaks.
- Inspect gasket surfaces before installation.
- Rotate spectacle blinds periodically to check wear and tear.
- Follow proper lifting procedures for heavy-duty flanges.
Leading Suppliers and Manufacturers
- A variety of global suppliers manufacture high-quality stainless steel spectacle blind flanges in all sizes, pressure ratings, and grades. Manufacturers often provide custom fabrication services, ensuring compatibility with unique project requirements. Choosing a trusted supplier guarantees compliance with international standards, quality certifications, and on-time delivery.
